Hydraulic
Jacks
Model No.

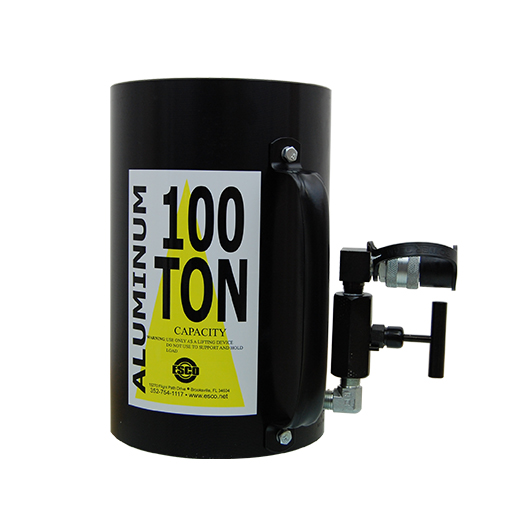

10300 100-Ton HD Jack
Description
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
- Lightweight yet durable
- For use with 10,000 psi pumps
- Ships completely assembled with valve and coupler
Tonnage: 100 Ton
Stroke: 6″ | 152mm
Min. Height: 11.75″ | 299mm
Max. Height: 17.75″ | 451mm
Weight: 55 lbs. | 25 kg
Model No.

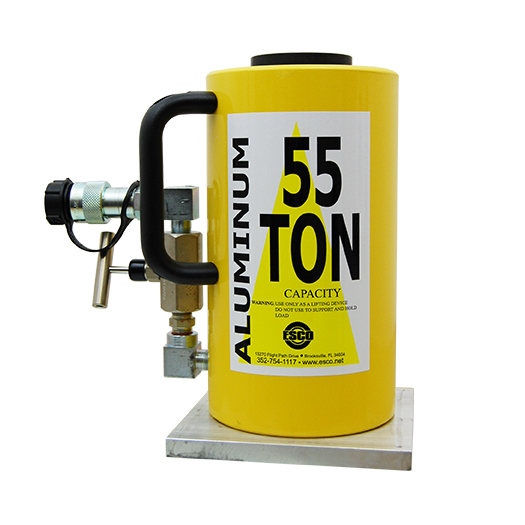

10308 55 Ton HD Jack
Description
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
- Lightweight yet durable
- For use with 10,000 psi pumps
- Ships completely assembled with valve, coupler, and 7″ x 7″ [178mm x 178mm] base
- 1/2″ [13mm] thick heavy duty cylinder wall
Tonnage: 55 Ton
Stroke: 6″ | 152mm
Min. Height: 11″ | 279mm
Max. Height: 17″ | 432mm
Weight: 39 lbs. | 18 kg
Model No.

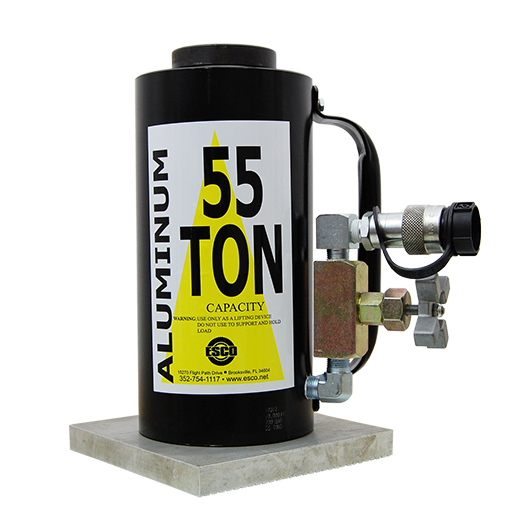

10312 55 Ton Tall Jack
Description
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
- Lightweight yet durable
- For use with 10,000 psi pumps
- Ships completely assembled with valve, coupler, and 7″ x 7″ [178mm x 178mm] base
Tonnage: 55 Ton
Stroke: 6″ | 152 mm
Min. Height: 10.5″ | 267 mm
Max. Height: 16.5″ | 419 mm
Weight: 33 lbs. | 15 kg
Model No.
10314 55 Ton High Lift Jack
Description
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
- Lightweight yet durable
- Ships completely assembled with valve, coupler, and 7″ x 7″ [178mm x 178mm] base
- Portable jack delivers 55 tons of lifting from any 10,000 psi hydraulic
Tonnage: 55 Ton
Stroke: 10″ | 254mm
Min. Height: 14.375″ | 365mm
Max. Height: 24.375″ | 619mm
Weight: 41 lbs. | 19 kg
Model No.

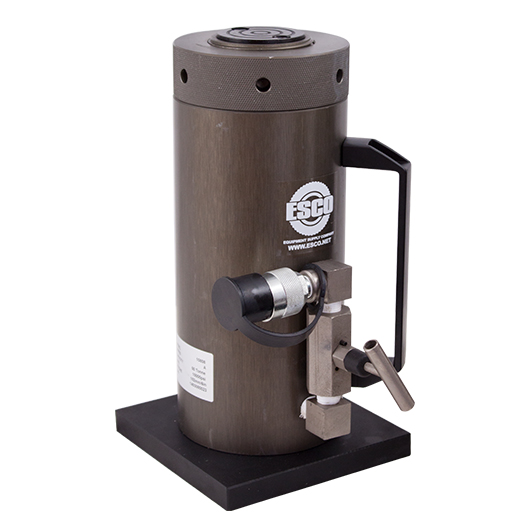

10808 50 Ton Safety Locking Collar Jack
Description
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
- Designed for Use in Multiple Heavy Lifting Applications including OTR/Mining Vehicle Lifting
- High Tonnage: 50 Ton Lifting Capacity
- Heavy Duty Aluminum Design at a Fraction of the Weight
- Lightweight and Compact Design makes Unit(s) Highly Portable
Stroke: 6.00″
Cylinder Effective Area: 10.99″ (in2)
Oil Capacity: 67.07″ (in3)
Weight: 26.4 lbs. | 12 kg
Model No.
10809 100 Ton Safety Locking Collar Jack
Description
ESCO Professional Aluminum & Steel Jacks (Cylinders) are known for their quality and lightweight durable design. With a variety of lifting capacities, from 55 Ton to 100 Ton Plus, the ESCO Professional Line of Hydraulic Jacks (Cylinders) is must-have for heavy lifting applications.
- Designed for Use in Multiple Heavy Lifting Applications including OTR/Mining Vehicle Lifting
- High Tonnage: 100 Ton Lifting Capacity
- Heavy Duty Aluminum Design at a Fraction of the Weight
- Lightweight and Compact Design makes Unit(s) Highly Portable
Stroke: 6.00″
Cylinder Effective Area: 20.58″ (in2)
Oil Capacity: 128.39″ (in3)
Weight: 66 lbs. | 30 kg
